Load and save DataFrames

We do not cover all features of the packages. Please refer to their documentation to learn them.

Here we’ll load CSV.jl to read and write CSV files and Arrow.jl and JLD2.jl, which allow us to work with a binary format, and finally JSONTables.jl for JSON interaction.

using DataFrames
using Arrow
using CSV
using JSONTables
using CodecZlib
using ZipFile
using JLD2
using StatsPlots ## for charts
using Mmap ## for zip compression

Let’s create a simple DataFrame for testing purposes,

x = DataFrame(
    A=[true, false, true], B=[1, 2, missing],
    C=[missing, "b", "c"], D=['a', missing, 'c']
)

and use eltypes to look at the column-wise types.

eltype.(eachcol(x))

4-element Vector{Type}:
 Bool
 Union{Missing, Int64}
 Union{Missing, String}
 Union{Missing, Char}

CSV.jl¶

Let’s use CSV.jl to save x to disk; make sure x1.csv does not conflict with some file in your working directory.

tmpdir = mktempdir()
location = joinpath(tmpdir, "x1.csv")
CSV.write(location, x)

"/tmp/jl_xQJ9mv/x1.csv"

Now we can see how it was saved by reading x.csv.

print(read(location, String))

A,B,C,D
true,1,,a
false,2,b,
true,,c,c

We can also load the CSV file back as a dataframe

y = CSV.read(location, DataFrame)

Note that when loading in a DataFrame from a CSV the column type for columns :C :D have changed to use special strings defined in the InlineStrings.jl package.

eltype.(eachcol(y))

4-element Vector{Type}:
 Bool
 Union{Missing, Int64}
 Union{Missing, InlineStrings.String1}
 Union{Missing, InlineStrings.String1}

JSONTables.jl¶

Often you might need to read and write data stored in JSON format. JSONTables.jl provides a way to process them in row-oriented or column-oriented layout. We present both options below.

location1 = joinpath(tmpdir, "x1.json")
open(io -> arraytable(io, x), location1, "w")

106

location2 = joinpath(tmpdir, "x2.json")
open(io -> objecttable(io, x), location2, "w")

76

Read them back.

print(read(location1, String))

[{"A":true,"B":1,"C":null,"D":"a"},{"A":false,"B":2,"C":"b","D":null},{"A":true,"B":null,"C":"c","D":"c"}]

print(read(location2, String))

{"A":[true,false,true],"B":[1,2,null],"C":[null,"b","c"],"D":["a",null,"c"]}

y1 = open(jsontable, location1) |> DataFrame

eltype.(eachcol(y1))

4-element Vector{Type}:
 Bool
 Union{Missing, Int64}
 Union{Missing, String}
 Union{Missing, String}

y2 = open(jsontable, location2) |> DataFrame

eltype.(eachcol(y2))

4-element Vector{Type}:
 Bool
 Union{Missing, Int64}
 Union{Missing, String}
 Union{Missing, String}

JLD2.jl¶

JLD2.jl is a high-performance, pure Julia library for saving and loading arbitrary Julia data structures, with HDF5 format.

Documentation: https://juliaio.github.io/JLD2.jl/dev/basic_usage/

save() and load(): General save and load using the FileIO.jl interface
jldsave() and jldloac(): Advanced save and load with more options
save_object() and load_object(): Single-object load and save

using JLD2
location = joinpath(tmpdir, "x.jld2")
save_object(location, x)

Read it back.

load_object(location)

Arrow.jl¶

Finally we use Apache Arrow format that allows, in particular, for data interchange with R or Python.

location = joinpath(tmpdir, "x.arrow")
Arrow.write(location, x)

"/tmp/jl_xQJ9mv/x.arrow"

y = Arrow.Table(location) |> DataFrame

eltype.(eachcol(y))

4-element Vector{Type}:
 Bool
 Union{Missing, Int64}
 Union{Missing, String}
 Union{Missing, Char}

Note that columns of y are immutable.

try
    y.A[1] = false
catch e
    show(e)
end

ReadOnlyMemoryError()

This is because Arrow.Table uses memory mapping and thus uses a custom vector types:

y.A

3-element Arrow.BoolVector{Bool}:
 1
 0
 1

y.B

3-element Arrow.Primitive{Union{Missing, Int64}, Vector{Int64}}:
 1
 2
  missing

You can get standard Julia Base vectors by copying a dataframe.

y2 = copy(y)

y2.A

3-element Vector{Bool}:
 1
 0
 1

y2.B

3-element Vector{Union{Missing, Int64}}:
 1
 2
  missing

Basic benchmarking¶

Next, we’ll create some files in the temp directory. In particular, we’ll time how long it takes us to write a DataFrame with 1000 rows and 100000 columns.

bigdf = DataFrame(rand(Bool, 10^4, 1000), :auto)

bigdf[!, 1] = Int.(bigdf[!, 1])
bigdf[!, 2] = bigdf[!, 2] .+ 0.5
bigdf[!, 3] = string.(bigdf[!, 3], ", as string")

tmpdir = mktempdir()

"/tmp/jl_thaWFw"

println("First run")

First run

println("CSV.jl")
fname = joinpath(tmpdir, "bigdf1.csv.gz")
csvwrite1 = @elapsed @time CSV.write(fname, bigdf; compress=true)

println("Arrow.jl")
fname = joinpath(tmpdir, "bigdf.arrow")
arrowwrite1 = @elapsed @time Arrow.write(fname, bigdf)

println("JSONTables.jl arraytable")
fname = joinpath(tmpdir, "bigdf1.json")
jsontablesawrite1 = @elapsed @time open(io -> arraytable(io, bigdf), fname, "w")

println("JSONTables.jl objecttable")
fname = joinpath(tmpdir, "bigdf2.json")
jsontablesowrite1 = @elapsed @time open(io -> objecttable(io, bigdf), fname, "w")

println("JLD2.jl")
fname = joinpath(tmpdir, "bigdf.jld2")
jld2write1 = @elapsed @time save_object(fname, bigdf; compress = ZstdFilter())

println("Second run")

println("CSV.jl")
fname = joinpath(tmpdir, "bigdf1.csv.gz")
csvwrite2 = @elapsed @time CSV.write(fname, bigdf; compress=true)

println("Arrow.jl")
fname = joinpath(tmpdir, "bigdf.arrow")
arrowwrite2 = @elapsed @time Arrow.write(fname, bigdf)

println("JSONTables.jl arraytable")
fname = joinpath(tmpdir, "bigdf1.json")
jsontablesawrite2 = @elapsed @time open(io -> arraytable(io, bigdf), fname, "w")

println("JSONTables.jl objecttable")
fname = joinpath(tmpdir, "bigdf2.json")
jsontablesowrite2 = @elapsed @time open(io -> objecttable(io, bigdf), fname, "w")

println("JLD2.jl")
fname = joinpath(tmpdir, "bigdf.jld2")
jld2write2 = @elapsed @time save_object(fname, bigdf; compress = ZstdFilter());

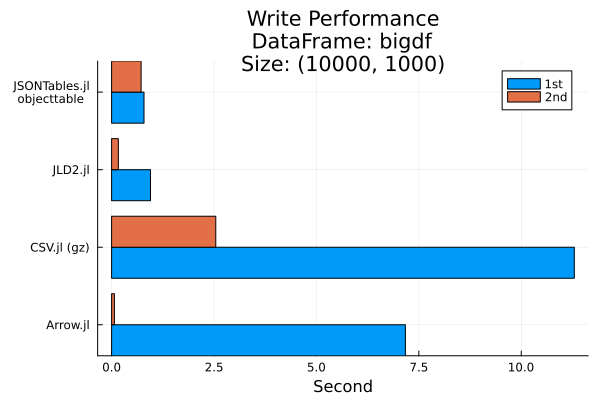

groupedbar(
    repeat(["CSV.jl (gz)", "Arrow.jl", "JSONTables.jl\nobjecttable", "JLD2.jl"],
        inner=2),
    [csvwrite1, csvwrite2, arrowwrite1, arrowwrite2, jsontablesowrite1, jsontablesowrite2, jld2write1, jld2write2],
    group=repeat(["1st", "2nd"], outer=4),
    ylab="Second",
    title="Write Performance\nDataFrame: bigdf\nSize: $(size(bigdf))",
    permute = (:x, :y)
)

CSV.jl
 11.220270 seconds (45.07 M allocations: 1.591 GiB, 1.84% gc time, 77.96% compilation time: <1% of which was recompilation)
Arrow.jl
  7.171427 seconds (6.63 M allocations: 326.363 MiB, 0.44% gc time, 99.03% compilation time)
JSONTables.jl arraytable
 12.849925 seconds (229.63 M allocations: 5.497 GiB, 23.10% gc time, 0.13% compilation time: <1% of which was recompilation)
JSONTables.jl objecttable
  0.790507 seconds (106.17 k allocations: 309.451 MiB, 67.38% gc time, 10.45% compilation time)
JLD2.jl
  0.948110 seconds (1.62 M allocations: 87.084 MiB, 91.56% compilation time: 9% of which was recompilation)
Second run
CSV.jl
  2.542804 seconds (44.41 M allocations: 1.560 GiB, 8.45% gc time)
Arrow.jl
  0.067850 seconds (80.86 k allocations: 5.164 MiB)
JSONTables.jl arraytable
 12.461437 seconds (229.63 M allocations: 5.497 GiB, 19.68% gc time, 0.08% compilation time)
JSONTables.jl objecttable
  0.719874 seconds (20.83 k allocations: 305.238 MiB, 72.09% gc time, 1.38% compilation time)
JLD2.jl
  0.164196 seconds (134.50 k allocations: 13.779 MiB)

data_files = ["bigdf1.csv.gz", "bigdf.arrow", "bigdf1.json", "bigdf2.json", "bigdf.jld2"] .|> (f -> joinpath(tmpdir, f))
df = DataFrame(file=["CSV.jl (gz)", "Arrow.jl", "objecttable", "arraytable", "JLD2.jl"], size=getfield.(stat.(data_files), :size))
sort!(df, :size)

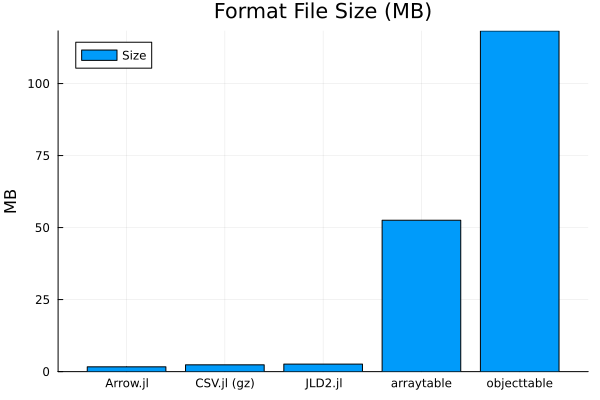

@df df plot(:file, :size / 1024^2, seriestype=:bar, title="Format File Size (MB)", label="Size", ylab="MB")

println("First run")

println("CSV.jl")
fname = joinpath(tmpdir, "bigdf1.csv.gz")
csvread1 = @elapsed @time CSV.read(fname, DataFrame)

println("Arrow.jl")
fname = joinpath(tmpdir, "bigdf.arrow")
arrowread1 = @elapsed @time df_tmp = Arrow.Table(fname) |> DataFrame
arrowread1copy = @elapsed @time copy(df_tmp)

println("JSONTables.jl arraytable")
fname = joinpath(tmpdir, "bigdf1.json")
jsontablesaread1 = @elapsed @time open(jsontable, fname)

println("JSONTables.jl objecttable")
fname = joinpath(tmpdir, "bigdf2.json")
jsontablesoread1 = @elapsed @time open(jsontable, fname)

println("JLD2.jl")
fname = joinpath(tmpdir, "bigdf.jld2")
jld2read1 = @elapsed @time load_object(fname)

println("Second run")
fname = joinpath(tmpdir, "bigdf1.csv.gz")
csvread2 = @elapsed @time CSV.read(fname, DataFrame)

println("Arrow.jl")
fname = joinpath(tmpdir, "bigdf.arrow")
arrowread2 = @elapsed @time df_tmp = Arrow.Table(fname) |> DataFrame
arrowread2copy = @elapsed @time copy(df_tmp)

println("JSONTables.jl arraytable")
fname = joinpath(tmpdir, "bigdf1.json")
jsontablesaread2 = @elapsed @time open(jsontable, fname)

println("JSONTables.jl objecttable")
fname = joinpath(tmpdir, "bigdf2.json")
jsontablesoread2 = @elapsed @time open(jsontable, fname)

println("JLD2.jl")
fname = joinpath(tmpdir, "bigdf.jld2")
jld2read2 = @elapsed @time load_object(fname);

First run
CSV.jl
  1.534298 seconds (789.53 k allocations: 65.431 MiB, 25.56% compilation time)
Arrow.jl
  0.494932 seconds (573.37 k allocations: 26.951 MiB, 98.59% compilation time)
  0.048102 seconds (14.02 k allocations: 10.298 MiB)
JSONTables.jl arraytable
  8.380434 seconds (271.16 k allocations: 1.772 GiB, 13.13% gc time, 0.06% compilation time)
JSONTables.jl objecttable
  0.312745 seconds (7.39 k allocations: 566.958 MiB, 5.73% gc time, 0.04% compilation time)
JLD2.jl
  0.277804 seconds (464.69 k allocations: 40.817 MiB, 88.21% compilation time)
Second run
  1.128934 seconds (158.81 k allocations: 34.748 MiB)
Arrow.jl
  0.005914 seconds (84.07 k allocations: 3.593 MiB)
  0.046148 seconds (14.02 k allocations: 10.298 MiB)
JSONTables.jl arraytable
  8.602098 seconds (271.10 k allocations: 1.772 GiB, 18.09% gc time)
JSONTables.jl objecttable
  0.318168 seconds (7.08 k allocations: 566.946 MiB, 3.33% gc time)
JLD2.jl
  0.031338 seconds (121.76 k allocations: 24.190 MiB)

Exclude JSONTables due to much longer timing

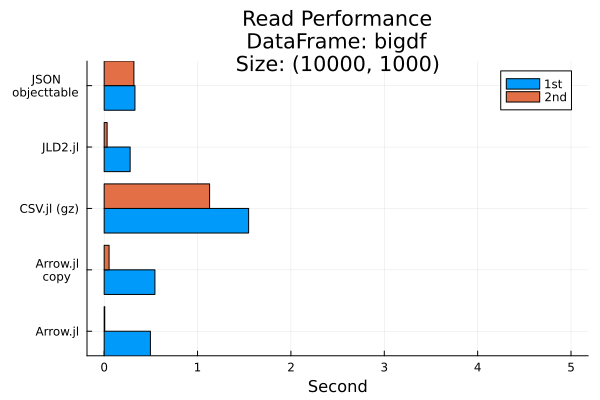

groupedbar(
    repeat(["CSV.jl (gz)", "Arrow.jl", "Arrow.jl\ncopy", ##"JSON\narraytable",
            "JSON\nobjecttable", "JLD2.jl"], inner=2),
    [csvread1, csvread2, arrowread1, arrowread2, arrowread1 + arrowread1copy, arrowread2 + arrowread2copy,
        # jsontablesaread1, jsontablesaread2,
        jsontablesoread1, jsontablesoread2, jld2read1, jld2read2],
    group=repeat(["1st", "2nd"], outer=5),
    ylab="Second",
    title="Read Performance\nDataFrame: bigdf\nSize: $(size(bigdf))",
    permute = (:x, :y)
)

Using gzip compression¶

A common user requirement is to be able to load and save CSV that are compressed using gzip. Below we show how this can be accomplished using CodecZlib.jl.

Again make sure that you do not have file named df_compress_test.csv.gz in your working directory. We first generate a random data frame.

df = DataFrame(rand(1:10, 10, 1000), :auto)

Use compress=true option to compress the CSV with the gz format.

tmpdir = mktempdir()
fname = joinpath(tmpdir, "df_compress_test.csv.gz")
CSV.write(fname, df; compress=true)

"/tmp/jl_DQPoTc/df_compress_test.csv.gz"

Read the CSV file back.

df2 = CSV.File(fname) |> DataFrame

df == df2

true

Working with zip files¶

Sometimes you may have files compressed inside a zip file. In such a situation you may use ZipFile.jl in conjunction an an appropriate reader to read the files. Here we first create a ZIP file and then read back its contents into a DataFrame.

df1 = DataFrame(rand(1:10, 3, 4), :auto)

df2 = DataFrame(rand(1:10, 3, 4), :auto)

And we show yet another way to write a DataFrame into a CSV file: Writing a CSV file into the zip file

w = ZipFile.Writer(joinpath(tmpdir, "x.zip"))

f1 = ZipFile.addfile(w, "x1.csv")
write(f1, sprint(show, "text/csv", df1))

45

write a second CSV file into the zip file

f2 = ZipFile.addfile(w, "x2.csv", method=ZipFile.Deflate)
write(f2, sprint(show, "text/csv", df2))

45

close(w)

Now we read the compressed CSV file we have written:

r = ZipFile.Reader(joinpath(tmpdir, "x.zip"))
# find the index index of file called x1.csv
index_xcsv = findfirst(x -> x.name == "x1.csv", r.files)
# to read the x1.csv file in the zip file
df1_2 = CSV.read(read(r.files[index_xcsv]), DataFrame)

df1_2 == df1

true

# find the index index of file called x2.csv
index_xcsv = findfirst(x -> x.name == "x2.csv", r.files)
# to read the x2.csv file in the zip file
df2_2 = CSV.read(read(r.files[index_xcsv]), DataFrame)

df2_2 == df2

true

Note that once you read a given file from r object its stream is all used-up (reaching its end). Therefore to read it again you need to close the file object r and open it again. Also do not forget to close the zip file once you are done.

close(r)

This notebook was generated using Literate.jl.
