using NeuralPDE
using Lux
using OptimizationOptimisers
using OrdinaryDiffEq
using LinearAlgebra
using Random
using Plots
rng = Random.Xoshiro(0)

Random.Xoshiro(0xdb2fa90498613fdf, 0x48d73dc42d195740, 0x8c49bc52dc8a77ea, 0x1911b814c02405e8, 0x22a21880af5dc689)

Solve ODEs#

The true function: \(u^{\prime} = cos(2 \pi t)\)

model(u, p, t) = cospi(2t)

model (generic function with 1 method)

Prepare data

tspan = (0.0, 1.0)
u0 = 0.0
prob = ODEProblem(model, u0, tspan)

ODEProblem with uType Float64 and tType Float64. In-place: false
Non-trivial mass matrix: false
timespan: (0.0, 1.0)
u0: 0.0

Construct a neural network to solve the problem.

chain = Lux.Chain(Lux.Dense(1, 5, σ), Lux.Dense(5, 1))
ps, st = Lux.setup(rng, chain) |> f64

((layer_1 = (weight = [-0.04929668828845024; -0.3266667425632477; … ; -1.4946011304855347; -1.0391809940338135;;], bias = [-0.458548903465271, -0.8280583620071411, -0.38509929180145264, 0.32322537899017334, -0.32623517513275146]), layer_2 = (weight = [0.565667450428009 -0.6051373481750488 … 0.3129439353942871 0.22128701210021973], bias = [-0.11007555574178696])), (layer_1 = NamedTuple(), layer_2 = NamedTuple()))

Solve the ODE as in DifferentialEquations.jl, just change the solver algorithm to NeuralPDE.NNODE().

optimizer = OptimizationOptimisers.Adam(0.1)
alg = NeuralPDE.NNODE(chain, optimizer, init_params = ps)
sol = solve(prob, alg, maxiters=2000, saveat = 0.01)

┌ Warning: Mixed-Precision `matmul_cpu_fallback!` detected and Octavian.jl cannot be used for this set of inputs (C [Matrix{Float64}]: A [Base.ReshapedArray{Float32, 2, SubArray{Float32, 1, Vector{Float32}, Tuple{UnitRange{Int64}}, true}, Tuple{}}] x B [Matrix{Float64}]). Falling back to generic implementation. This may be slow.
└ @ LuxLib.Impl ~/.julia/packages/LuxLib/utJLG/src/impl/matmul.jl:190

retcode: Success
Interpolation: Trained neural network interpolation
t: 0.0:0.01:1.0
u: 101-element Vector{Float64}:
  0.0
  0.009470801765239806
  0.018864986893017414
  0.028164453024528673
  0.037349923322704946
  0.04640094628528643
  0.05529590690407329
  0.06401205073154599
  0.07252552245041087
  0.08081142054470485
  ⋮
 -0.0792016212790274
 -0.07078043904529592
 -0.061979937611305096
 -0.05281020014943482
 -0.04328123215064068
 -0.03340294794124597
 -0.023185159181656867
 -0.01263756513289271
 -0.0017697444939892375

Comparing to the regular solver

sol2 = solve(prob, Tsit5(), saveat=sol.t)

retcode: Success
Interpolation: 1st order linear
t: 101-element Vector{Float64}:
 0.0
 0.01
 0.02
 0.03
 0.04
 0.05
 0.06
 0.07
 0.08
 0.09
 ⋮
 0.92
 0.93
 0.94
 0.95
 0.96
 0.97
 0.98
 0.99
 1.0
u: 101-element Vector{Float64}:
  0.0
  0.009993421557959134
  0.019947410479672478
  0.029822662260300302
  0.03958022071476466
  0.04918159908446656
  0.05858894195530296
  0.0677649690474175
  0.07667347363816583
  0.08527940825421805
  ⋮
 -0.07670552085637702
 -0.06779339219172714
 -0.05861083135542737
 -0.049195336960505105
 -0.039586192500697205
 -0.029824466350448206
 -0.019949141853139615
 -0.009995163933671121
 -1.7408033452440449e-6

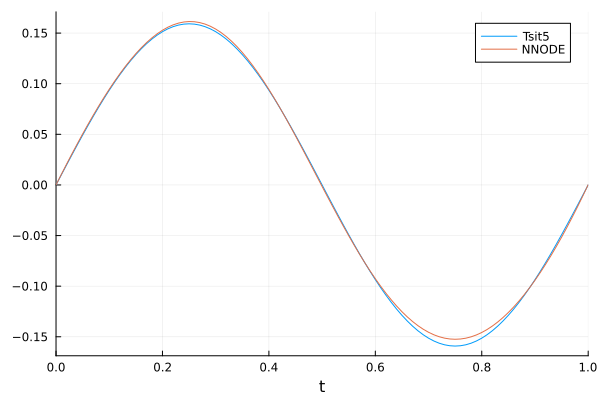

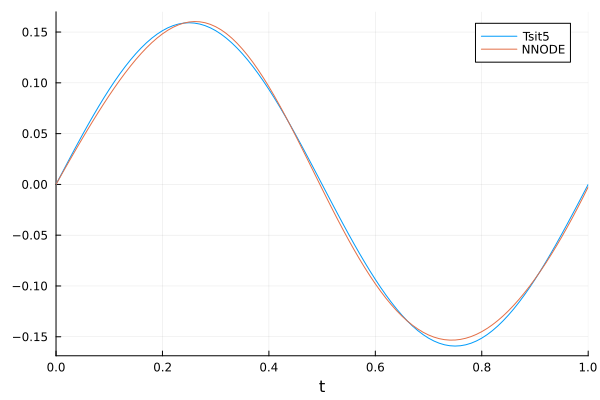

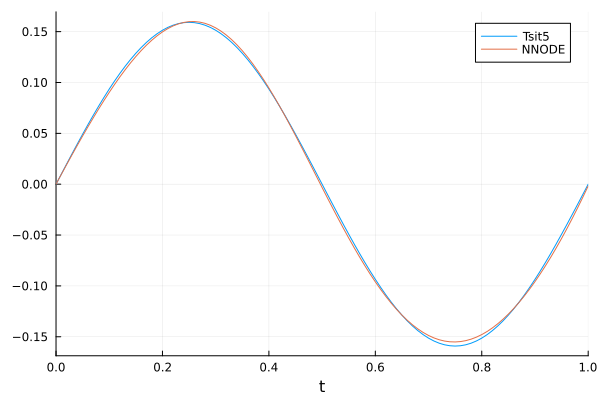

plot(sol2, label = "Tsit5")
plot!(sol.t, sol.u, label = "NNODE")

Parameter estimation#

using NeuralPDE, OrdinaryDiffEq, Lux, Random, OptimizationOptimJL, LineSearches, Plots
rng = Random.Xoshiro(0)

Random.Xoshiro(0xdb2fa90498613fdf, 0x48d73dc42d195740, 0x8c49bc52dc8a77ea, 0x1911b814c02405e8, 0x22a21880af5dc689)

NNODE only supports out-of-place functions

function lv(u, p, t)
    u₁, u₂ = u
    α, β, γ, δ = p
    du₁ = α * u₁ - β * u₁ * u₂
    du₂ = δ * u₁ * u₂ - γ * u₂
    [du₁, du₂]
end

lv (generic function with 1 method)

Generate data

tspan = (0.0, 5.0)
u0 = [5.0, 5.0]
true_p = [1.5, 1.0, 3.0, 1.0]
prob = ODEProblem(lv, u0, tspan, true_p)
sol_data = solve(prob, Tsit5(), saveat = 0.01)

t_ = sol_data.t
u_ = Array(sol_data)

2×501 Matrix{Float64}:
 5.0  4.82567  4.65308  4.48283  4.31543  …  1.01959   1.03094   1.04248
 5.0  5.09656  5.18597  5.26791  5.34212     0.397663  0.389887  0.382307

Define a neural network

n = 15
chain = Chain(Dense(1, n, σ), Dense(n, n, σ), Dense(n, n, σ), Dense(n, 2))
ps, st = Lux.setup(rng, chain) |> f64

((layer_1 = (weight = [-0.04929668828845024; -0.3266667425632477; … ; -1.3531280755996704; -0.2917589843273163;;], bias = [0.28568029403686523, -0.4209803342819214, -0.24613642692565918, -0.9429000616073608, -0.3618292808532715, 0.077278733253479, 0.9969245195388794, 0.7939795255661011, 0.45440757274627686, -0.4830443859100342, -0.6861011981964111, -0.3221019506454468, -0.5597391128540039, -0.15051674842834473, 0.9440881013870239]), layer_2 = (weight = [-0.08606009185314178 -0.2168799340724945 … -0.3507671356201172 0.07374405860900879; 0.24009406566619873 -0.23728196322917938 … 0.3494441509246826 -0.21207460761070251; … ; 0.3976286053657532 0.28444960713386536 … -0.32817623019218445 0.3963923156261444; -0.07926430553197861 0.35875919461250305 … -0.035931285470724106 -0.2851111590862274], bias = [-0.065037302672863, 0.18384626507759094, 0.17181798815727234, -0.17310386896133423, 0.06428726017475128, 0.09600061178207397, -0.08703552931547165, 0.06890828162431717, -0.16194558143615723, -0.14649711549282074, -0.14649459719657898, -0.04401325806975365, -0.015492657199501991, 0.1046019047498703, 0.15015578269958496]), layer_3 = (weight = [-0.2995997667312622 0.1492127627134323 … -0.011808237992227077 -0.3409591317176819; 0.4351722300052643 0.1286778748035431 … -0.20781199634075165 -0.030425487086176872; … ; -0.02206072397530079 0.1434853971004486 … -0.05763476714491844 -0.2672235369682312; 0.2975636124610901 -0.06781639903783798 … 0.4012162387371063 0.1212344542145729], bias = [0.04135546088218689, -0.2398381233215332, 0.1595604568719864, 0.08355490118265152, -0.06149742379784584, -0.06998120248317719, -0.008059235289692879, -0.10936713218688965, -0.18340998888015747, 0.06297893822193146, 0.04081515222787857, -0.04258332401514053, 0.11171907186508179, -0.21218737959861755, 0.07965957373380661]), layer_4 = (weight = [0.3909372091293335 -0.23473051190376282 … 0.07385867834091187 0.31727132201194763; -0.04396386072039604 0.1817844808101654 … -0.26729491353034973 0.24492914974689484], bias = [0.04966225475072861, -0.04299044609069824])), (layer_1 = NamedTuple(), layer_2 = NamedTuple(), layer_3 = NamedTuple(), layer_4 = NamedTuple()))

Loss function

additional_loss(phi, θ) = sum(abs2, phi(t_, θ) .- u_) / size(u_, 2)

additional_loss (generic function with 1 method)

NNODE solver

opt = LBFGS(linesearch = BackTracking())
alg = NNODE(chain, opt, ps; strategy = WeightedIntervalTraining([0.7, 0.2, 0.1], 500), param_estim = true, additional_loss)

NeuralPDE.NNODE{Lux.Chain{@NamedTuple{layer_1::Lux.Dense{typeof(NNlib.σ), Int64, Int64, Nothing, Nothing, Static.True}, layer_2::Lux.Dense{typeof(NNlib.σ), Int64, Int64, Nothing, Nothing, Static.True}, layer_3::Lux.Dense{typeof(NNlib.σ), Int64, Int64, Nothing, Nothing, Static.True}, layer_4::Lux.Dense{typeof(identity), Int64, Int64, Nothing, Nothing, Static.True}}, Nothing}, Optim.LBFGS{Nothing, LineSearches.InitialStatic{Float64}, LineSearches.BackTracking{Float64, Int64}, Returns{Nothing}}, @NamedTuple{layer_1::@NamedTuple{weight::Matrix{Float64}, bias::Vector{Float64}}, layer_2::@NamedTuple{weight::Matrix{Float64}, bias::Vector{Float64}}, layer_3::@NamedTuple{weight::Matrix{Float64}, bias::Vector{Float64}}, layer_4::@NamedTuple{weight::Matrix{Float64}, bias::Vector{Float64}}}, Bool, NeuralPDE.WeightedIntervalTraining{Float64}, Bool, typeof(Main.var"##277".additional_loss), Vector{Any}, Base.Pairs{Symbol, Union{}, Nothing, @NamedTuple{}}}(Lux.Chain{@NamedTuple{layer_1::Lux.Dense{typeof(NNlib.σ), Int64, Int64, Nothing, Nothing, Static.True}, layer_2::Lux.Dense{typeof(NNlib.σ), Int64, Int64, Nothing, Nothing, Static.True}, layer_3::Lux.Dense{typeof(NNlib.σ), Int64, Int64, Nothing, Nothing, Static.True}, layer_4::Lux.Dense{typeof(identity), Int64, Int64, Nothing, Nothing, Static.True}}, Nothing}((layer_1 = Dense(1 => 15, σ), layer_2 = Dense(15 => 15, σ), layer_3 = Dense(15 => 15, σ), layer_4 = Dense(15 => 2)), nothing), Optim.LBFGS{Nothing, LineSearches.InitialStatic{Float64}, LineSearches.BackTracking{Float64, Int64}, Returns{Nothing}}(10, LineSearches.InitialStatic{Float64}(1.0, false), LineSearches.BackTracking{Float64, Int64}(0.0001, 0.5, 0.1, 1000, 3, Inf, nothing), nothing, Returns{Nothing}(nothing), Optim.Flat(), true), (layer_1 = (weight = [-0.04929668828845024; -0.3266667425632477; … ; -1.3531280755996704; -0.2917589843273163;;], bias = [0.28568029403686523, -0.4209803342819214, -0.24613642692565918, -0.9429000616073608, -0.3618292808532715, 0.077278733253479, 0.9969245195388794, 0.7939795255661011, 0.45440757274627686, -0.4830443859100342, -0.6861011981964111, -0.3221019506454468, -0.5597391128540039, -0.15051674842834473, 0.9440881013870239]), layer_2 = (weight = [-0.08606009185314178 -0.2168799340724945 … -0.3507671356201172 0.07374405860900879; 0.24009406566619873 -0.23728196322917938 … 0.3494441509246826 -0.21207460761070251; … ; 0.3976286053657532 0.28444960713386536 … -0.32817623019218445 0.3963923156261444; -0.07926430553197861 0.35875919461250305 … -0.035931285470724106 -0.2851111590862274], bias = [-0.065037302672863, 0.18384626507759094, 0.17181798815727234, -0.17310386896133423, 0.06428726017475128, 0.09600061178207397, -0.08703552931547165, 0.06890828162431717, -0.16194558143615723, -0.14649711549282074, -0.14649459719657898, -0.04401325806975365, -0.015492657199501991, 0.1046019047498703, 0.15015578269958496]), layer_3 = (weight = [-0.2995997667312622 0.1492127627134323 … -0.011808237992227077 -0.3409591317176819; 0.4351722300052643 0.1286778748035431 … -0.20781199634075165 -0.030425487086176872; … ; -0.02206072397530079 0.1434853971004486 … -0.05763476714491844 -0.2672235369682312; 0.2975636124610901 -0.06781639903783798 … 0.4012162387371063 0.1212344542145729], bias = [0.04135546088218689, -0.2398381233215332, 0.1595604568719864, 0.08355490118265152, -0.06149742379784584, -0.06998120248317719, -0.008059235289692879, -0.10936713218688965, -0.18340998888015747, 0.06297893822193146, 0.04081515222787857, -0.04258332401514053, 0.11171907186508179, -0.21218737959861755, 0.07965957373380661]), layer_4 = (weight = [0.3909372091293335 -0.23473051190376282 … 0.07385867834091187 0.31727132201194763; -0.04396386072039604 0.1817844808101654 … -0.26729491353034973 0.24492914974689484], bias = [0.04966225475072861, -0.04299044609069824])), false, true, NeuralPDE.WeightedIntervalTraining{Float64}([0.7, 0.2, 0.1], 500), true, Main.var"##277".additional_loss, Any[], false, Base.Pairs{Symbol, Union{}, Nothing, @NamedTuple{}}())

Solve the problem Use verbose=true to see the fitting process

sol = solve(prob, alg, verbose = false, abstol = 1e-8, maxiters = 5000, saveat = t_)

retcode: Success
Interpolation: Trained neural network interpolation
t: 501-element Vector{Float64}:
 0.0
 0.01
 0.02
 0.03
 0.04
 0.05
 0.06
 0.07
 0.08
 0.09
 ⋮
 4.92
 4.93
 4.94
 4.95
 4.96
 4.97
 4.98
 4.99
 5.0
u: 501-element Vector{Vector{Float64}}:
 [5.0, 5.0]
 [4.8254261007659816, 5.096469660044924]
 [4.65295822684779, 5.185967610551635]
 [4.482971969548325, 5.2680927524803005]
 [4.315865102343683, 5.342521416999181]
 [4.152038805477307, 5.409012007666222]
 [3.991880205768256, 5.467405864927881]
 [3.835747592898326, 5.517624932550247]
 [3.6839590983291464, 5.5596669226398445]
 [3.536785076537865, 5.593598699569374]
 ⋮
 [0.9512618403079758, 0.44697339625191734]
 [0.961092376866886, 0.43794142878766085]
 [0.9710377226063045, 0.42914080919247244]
 [0.9810947168289506, 0.4205656224972518]
 [0.9912601935186096, 0.4122100685132368]
 [1.0015309832581885, 0.4040684598778084]
 [1.0119039151312643, 0.39613522013372293]
 [1.0223758186039311, 0.38840488184169786]
 [1.0329435253836938, 0.38087208472641176]

See the fitted parameters

println(sol.k.u.p)

[1.498946976232106, 0.999383731922138, 3.0023835865619874, 1.0004595309197306]

Visualize the fit

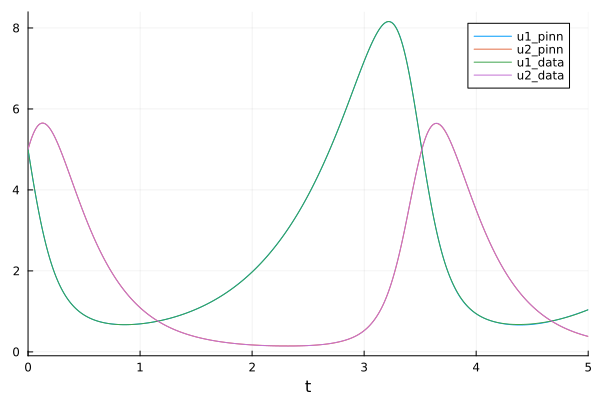

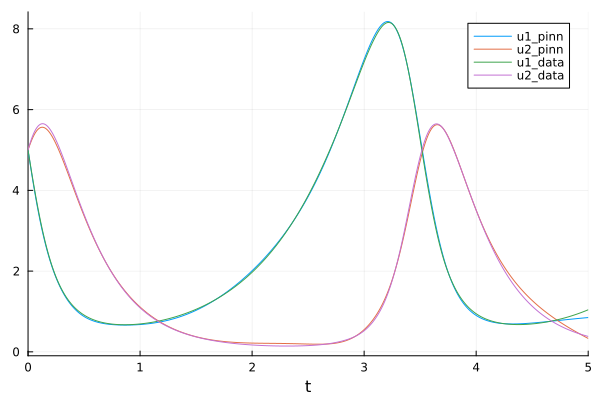

plot(sol, labels = ["u1_pinn" "u2_pinn"])
plot!(sol_data, labels = ["u1_data" "u2_data"])
